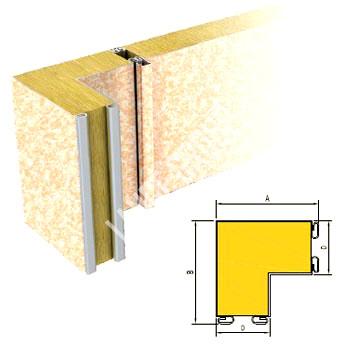

Marine Non-Metal Materials >> Panel System >> Corner Panel >> Type M and C Corner PanelExternal Corner
|  | ||||
| Product Name: | External Corner | ||||
| Product No.: | MMDE200-CP001 | MMDE200-CP002 | |||
| Type | Type M External Corner | Type C External Corner | |||
| Fire class | B-0 | B-0 | |||
| Sound reduction | dB | dB | |||
| Thermal transmittance | 1.13 Kcal/m1h | 1.13 Kcal/m2h | |||
| Surface finish | PVC/PET film Laminated (low flame-spread) or galvanized Steel sheet | ||||
| Tolerances | Width1 , Height 3 , Thickness1 | ||||
| Core material | Rock wool 150kg/m3 | ||||
