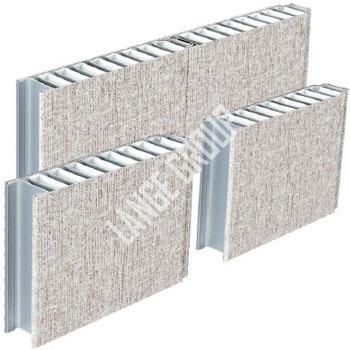

| Product Name: | Type A wall panel | ||||
| Product No.: | MMDE100-PP009 | MMDE100-PP010 | MMDE100-PP011 | MMDE100-PP012 | |
| Type | B50A | B30A | B25A | B25AA | |
| Fire class | B-15 | B-15/B-0 | B-15/B-0 | B-0 | |
| Dimension | 25/30/50mm(t)x550mm(w)xlength(max.3500mm) | ||||
| Weight | 16.0kg/m1 | 13.5kg/m2 | 12.9kg/m2 | 10.0kg/m2 | |
| Sound reduction | 33dB | 31dB | Db | dB | |
| Thermal transmittance | 0.58 Kcal/m1h．℃ | 1.1 Kcal/m2h．℃ | 1.14 Kcal/m2h．℃ | 3.35 Kcal/m2h．℃ | |
| Surface finish | PVC/PET film Laminated (low flame-spread) or galvanized Steel sheet | ||||
| Tolerances | Width±1 , Height ±3 , Thickness±1 | ||||
| Core material | Rock wool 150kg/m3 | Aluminum honeycomb | |||
