Marine Fire Suppression System >> Parts >> Foam Equipments >> Fixed Foam EquipmentsSelf-primming Fire Monitor
 |
 |
|

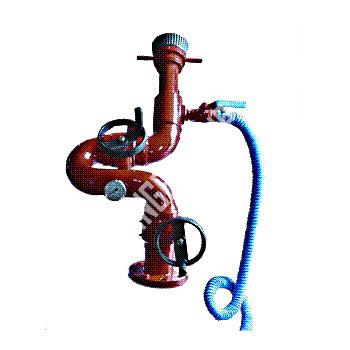

| Product name: | Self-primming Fire Monitor | |
| Product No. | MFFE005-FM023 | |
| Descriptions: | Produced on requirement | |
| Effective capacity: | 3000L/min, with self primming low expansion pipe or water pipe | |
| The max pressure: | 16bar | |
| Inlet | DN80 PN16 | |
| Outlet | Round Flange DN80 | |
| optional flange: | DN150 ANSI6'' | |
| rotation range | Arrested in 360℃ range be the stopper pin | |
| Horizontal: | 340℃ | |
| Vertical: | +85℃~ 70℃ | |
| Weight: | ~30Kg | |
| Materials: | ||
| Nody: | Stainless Steel/Carbon steel | |
| Sealing: | NBR | |
| Pipe: | Hard aluminum alloy | |
| Flange: | Stainless Steel/Carbon steel | |
| Painting: | Red RAL3000 | |
| The manitor can be arrested in any horizontal or vertical position. | ||
