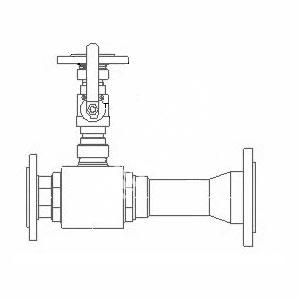

Marine Fire Suppression System >> Parts >> Foam Equipments >> Fixed Foam EquipmentsRound The Pump Foam Proportioner
 |
 |
||
| Product name | Round The Pump Foam Proportioner | ||
| produt No | MFFE018-PH | ||
| Working pressure range | 0.6-1.6Mpa | ||
| Mixing Rate | 3%-6% | ||
| Type | PH120 | PH330 | |
| Maximum mixture quantity(L/min) | 3% | 8500 | 25600 |
| 6% | 4250 | 12800 | |
| Consumptive water use(L/min@1.2Mpa) | ~330 | ~880 | |
| Inlet & Outlet diameter | fire water | DN65 | DN100 |
| foam inlet | DN50 | DN80 | |
