wet system alarm valves
Product No: MFFE007-WPSS
Description:
Marine wet automatic water sprinkler system is a type of fixed type fire extinguishing system,which can operate immediately at any time,to prevent fire spread and control fire quickly.When operate,it will send audible and visible alarm at the same time,as well sa indicate fire symptom and postrion of every protected zone to call together crew to put out fire.It consists of fast response sprinklers,wet device,pneumatic pressure tank ,fire alarm controller and pump start panel etc.
In the system,fast response sprinklers are connected to pipe system that is full of water, as well as to sprinkler system.When fire occurs,the sprinklers will spray instantly because of heat.The system performace complies with International Convention for the Safety of Life at sea and meets requirements of CCS.

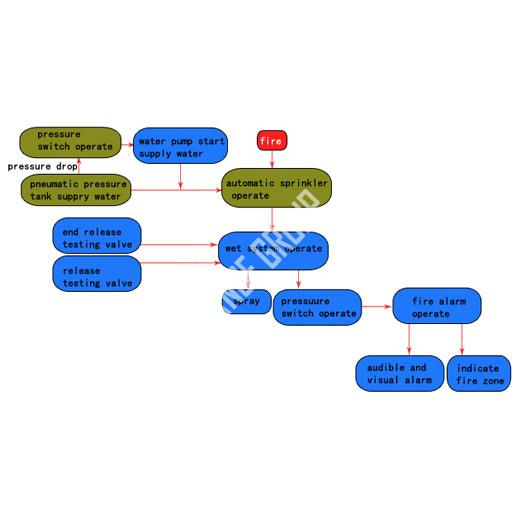

Wet pipe sprinkler system structure
Wet device
Type Norminal diameter(mm) Related operating pressure(Mpa) Material
CZS100 100 1.2 stainless steel
CZS150 150 1.2 stainless steel
CZS200 200 1.2 stainless steel
Fast response sprinkler
response mode Diameter of glass bulb(mm) response time index(ms)1/2 Actual operating time(s) Average compressive stength of glass bulb
fast response φ3 36 11.4 3500
