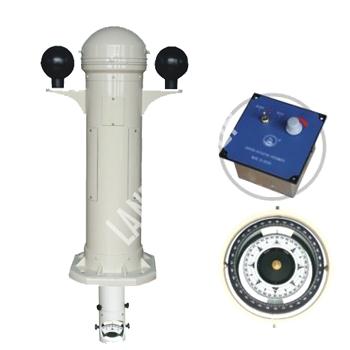

Our company has developed entirely new generational reflector magnetic compass.The product has the advantages of beautiful outline,clear and bright reflector dial,its performance are completely in accordance with the ISO 449 and IMO standard and requirement related to navigation equipment.The magnetic compass adopts new generational directional alnico and correctional alnico,it can raise the precision of magnetic compass and transducer by a large margin.

Modei

Vertical

Dial Diameter

180mm

Dial Graduation

1°for each grid(0to 360°)

Using temperature

-25℃to+70℃

Indicating deviation(H=35µT,T=20±3℃)

≤0.5°

Half period(H=35µT,T=20±3℃)

≥8.62S

Friction deviation(H=35µT,T=20±3℃)

≤0.09°

Main semicircle self heterodyne correcting energy

1°to45°

Secondary semicircle self heterodyne correcting energy

1°to6°(magnetic inclination Q=45°)

Quadrant self heterodyne correcting energy

0.5°to10°

inclining self heterodyne correcting energy

-75µTto +75µT

Lens barrel flexing range

±100mm

Dial image expanding rate

≈2times(original dial graduation)

Lighting power supply

AC220V DC24V

Outline Dimension

825×511×1359mm(Excluding the length of lens barrel)

Diameter of mounting holes

Pitchrow 445ApertureΦ24

weight

82kg
