Marine Navigation System >> Compass >> Magnetic Compass >> Type CPT-130A Table Model Magnetic Compass
 |
|||
| Product Name | Type CPT-130A Table Model Magnetic Compass | ||
| product NO. | MENS065-MC05 | ||
| introduction | CPT-130A Magnetic Compass is a sort of table model liquid magnetic compass.The compass is a magnetic compass class B and it is designed and manufactured in accordance with the national standard GB/T 10104-1995 ( General Technical Terms of Marine Magnetic Compass Class B ).The product has the advantages of simple structure,complete function,convenient correcting difference,accurate direction,stabilization and reliable .The magnetic compass is suitable for the large and middle motorized fishing boats and small steel vessels acting as steering compass. |
||
| main technical parameters | Project | Vertical | |
| Dial Diameter | 130mm | ||
| Dial Graduation | 1°for each grid(0to360°) | ||
| Using temperature | -25℃to+70℃ | ||
| Indicating deviation(H=35µT,T=20±3℃) | ≤1.5° | ||
| Half period(H=35µT,T=20±3℃) | ≥5.59S | ||
| Friction deviation(H=35µT,T=20±3℃) | ≤0.26° | ||
| Main semicircle self heterodyne correcting energy | 1°to45° | ||
| Quadrant self heterodyne correcting energy | 0.5°to7° | ||
| inclining self heterodyne correcting energy | -75µTto+75µT | ||
| Lighting power supply | AC220V DC24V | ||
| Outline Dimension | 390×240×370mm | ||
| packing size | 450×290×430mm | ||

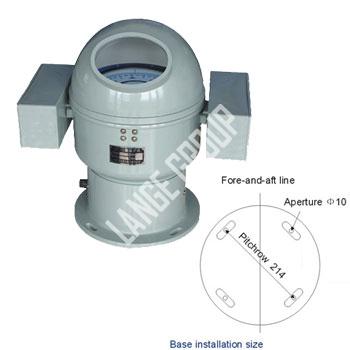

| Diameter of mounting holes | Pitchrow 214 ApertureΦ10 | ||
| weight | 7.5kg | ||
