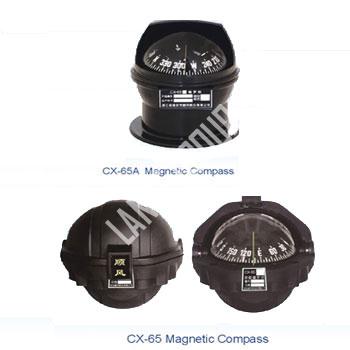

| Product Name | CX-65 Small Boat Magnetic Compass | |||
| product NO. | MENS068-MC08 | |||
| introduction | CX-65 small boat magnetic compass is a good liquid magnetic compass.The compass is designed and manufactured in accordance with ISO 14227-2001 "Small Boat Magnetic Compass" standard.Its actual dial diameter is 65mm,but the special spherical cover magnifies it to 85mm.The product has the advantages of simple structure,convenient using,accurate direction,high sensitivity legible dial etc.It is suitable for yachts,lifesaving boats,enclosed boats indicating course heading or distinguishing azimuth. |
|||
| main technical parameters | Project |
Data |
||
CX-65 Magnetic Compass |
CX-65A Magnetic Compass |
|||
Dial Diameter |
Φ65mm,magnifies Φ85mm |
Φ65mm,magnifies Φ85mm |
||
Dial Graduation |
5°for each grid(0to360°) |
5°for each grid(0to360°) |
||
Using temperature |
-20℃to+60℃ |
-20℃to+60℃ |
||
Indicating deviation(H=35µT,T=20±3℃) |
≤1.5° |
≤1.5° |
||
Half period(H=35µT,T=20±3℃) |
≥3S |
≥3S |
||
Friction deviation(H=35µT,T=20±3℃) |
≤1° |
≤1° |
||
Main semicircle self heterodyne correcting energy |
1°to30°(Matching) |
|||
Lighting power supply |
AC220V DC24V(12V) |
AC220V DC24V(12V) |
||
Outline Dimension |
135×135×135mm |
130×130×150mm |
||
Diameter of mounting holes |
Pitchrow 124 ApertureΦ6 |
Pitchrow 115 ApertureΦ5 |
||
weight |
1kg |
0.8kg |
||
