Product Name |

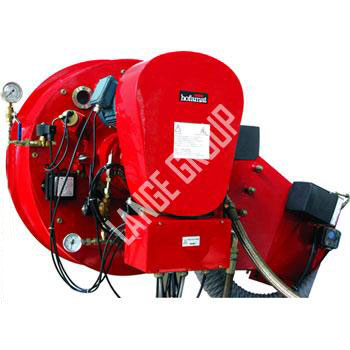

RZ Series Burner | ||||||
|
Type |
Rotary Cup | ||||||
|
Specifications | |||||||
|
Product No. |
Fuel Consumption (max.) | Boiler output(under 80% effeciency) | Turndown Ratio |
Fan Motor Power | |||
| fuel oil | steam | thermal output | |||||
| L/h | Kg/h | kg/h | ×10^4kcal/h | kw | kw | ||
|
MBOI212-RC030 |
172 | 160 | 2409 | 130.1 | 1511 | 1:3 | 5.5/7.5/15 |
|
MBOI212-RC031 |
344 | 320 | 4818 | 260.2 | 3022 | 1:5 | |
|
MBOI212-RC032 |
516 | 460 | 7227 | 390.3 | 4533 | 1:6 | 15/18.5/22 |
|
MBOI212-RC033 |
656 | 610 | 9188 | 496.2 | 5761 | 1:6 | |
|
MBOI212-RC034 |
828 | 770 | 11598 | 626.3 | 7272 | 1:6 | 18.5/22/30/37 |
|
MBOI212-RC035 |
1000 | 930 | 14008 | 756.4 | 8783 | 1:6 | |
|
MBOI212-RC036 |
1323 | 1230 | 18527 | 1000.4 | 11616 | 1:6 | 30/37/45/55 |
|
MBOI212-RC037 |
1656 | 1540 | 23196 | 1252.6 | 14544 | 1:6 | |
