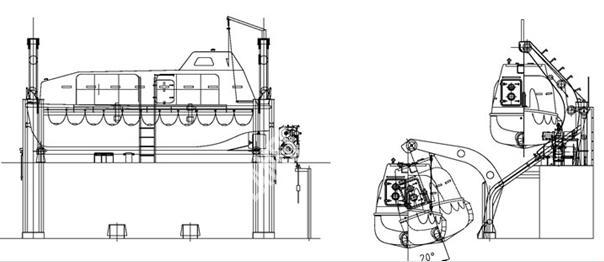

| Gravity Sliding Track Davit | |||||||
| Product No. | Max. Working Load(KN) | Max. Recovering Load(KN) | B(MM) | H(MM) | Design Condition | Dia. Of Wire Rope(MM) | Total Weight(KG) |
| MLSE703-LG65 | 65 | 20°List 10°trim | Φ20 | ||||
| MLSE703-LG75 | 75 | 42 | 3830 | 7220 | 20°List 10°trim | Φ20 | 5300 |
| MLSE703-LG85 | 85 | 20°List 10°trim | Φ22 | ||||
| MLSE703-LG120 | 120 | 60 | 3840 | 9460 | 20°List 10°trim | Φ24 | 7900 |
| MLSE703-LG155 | 155 | 20°List 10°trim | Φ26 | ||||
