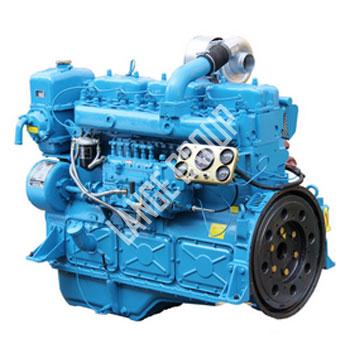

| Product Name | NanTong 135 138 High Speed Marine Diesel Engine | |||||
| Type | AVL | |||||
| Brand | NanTong Diesel Engine | |||||
| Series | 135⁄138 | |||||
| Product No. | Engine Model | Cylinder Number | Bore/Stroke | Rated Power | Rated Rotation | SFOC |
| mm | Kw | r/min | g/Kw.h | |||
| MPPS103–NT001 | 2135Ca⁄2135Caf | 2 | 135⁄140 | 24⁄28 | 1500 | 215 |
| MPPS103–NT002 | 2135ACa⁄2135ACaf | 2 | 135⁄140 | 30.2⁄35 | 1500 | 215 |
| MPPS103–NT003 | 4135Ca⁄4135Caf | 4 | 135⁄140 | 52.9/53 | 1500 | 215 |
| MPPS103–NT004 | 4135ACa⁄4135ACaf | 4 | 135⁄140 | 66.2 | 1500 | 215 |
| MPPS103–NT005 | NT4135CzR | 4 | 135⁄160 | 76 | 1500 | 208 |
| MPPS103–NT006 | NT4135CzRX | 4 | 135⁄160 | 85 | 1500 | 208 |
| MPPS103–NT007 | J4135CzA | 4 | 135⁄150 | 73.2 | 1500 | 198 |
| MPPS103–NT008 | S4135CZA | 4 | 135⁄150 | 73.5 | 1500 | 215 |
| MPPS103–NT009 | S4135CZ7 | 4 | 135⁄140 | 42.7 | 1500 | 215 |
| MPPS103–NT010 | T8138CzU | 8 | 138⁄168 | 202 | 1500 | 208 |
| MPPS103–NT011 | T8138ZLCz | 8 | 138⁄163 | 324.5 | 1500 | 205 |
| MPPS103–NT012 | 8138ZLCz9 | 8 | 138⁄163 | 211.2 | 1200 | 215 |
| MPPS103–NT013 | JT8138ZLCz | 8 | 138⁄163 | 214 | 1200 | 205 |
| MPPS103–NT014 | J8138ZLCz | 8 | 138⁄163 | 220 | 1050 | 198 |
| MPPS103–NT015 | 8138ZLCz7 | 8 | 138⁄163 | 247.7 | 1350 | 215 |
| MPPS103–NT016 | TC8138ZLCz7 | 8 | 138⁄163 | 257 | 1050 | 208 |
| MPPS103–NT017 | 8138ZLCz | 8 | 138⁄163 | 282 | 1500 | 215 |
| MPPS103–NT018 | NT8138ZLCz | 8 | 138⁄163 | 315 | 1500 | 208 |
| MPPS103–NT019 | J8138Cz | 8 | 138⁄163 | 100 | 1200 | 198 |
| MPPS103–NT020 | 8138Cz9 | 8 | 138⁄163 | 104.5 | 1000 | 215 |
| MPPS103–NT021 | J8135Cz | 8 | 135⁄163 | 110 | 1100 | 208 |
| MPPS103–NT022 | 8135Cz1 | 8 | 135⁄163 | 158 | 1500 | 208 |
| MPPS103–NT023 | J8138CzU | 8 | 138⁄168 | 164 | 1250 | 198 |
| MPPS103–NT024 | 8138Cz | 8 | 138⁄163 | 174.8⁄184 | 1500 | 215 |
| MPPS103–NT025 | T8138CzU | 8 | 138⁄168 | 192 | 1500 | 208 |
| MPPS103–NT026 | JC8138ZLCz | 8 | 138⁄163 | 198 | 1100 | 198 |
| MPPS103–NT027 | NT8138CzU | 8 | 138⁄163 | 198.5 | 1500 | 208 |
| MPPS103–NT028 | TC8138ZLCz | 8 | 138⁄163 | 350⁄360.8 | 1500 | 205⁄208 |
| MPPS103–NT029 | 6135 | 6 | 135⁄140,150,160,168 | 58.8–261 | 1000–1500 | 198–215 |
| MPPS103–NT030 | 6138 | 6 | 138⁄168 | 264–335 | 1250–1500 | 205–208 |
