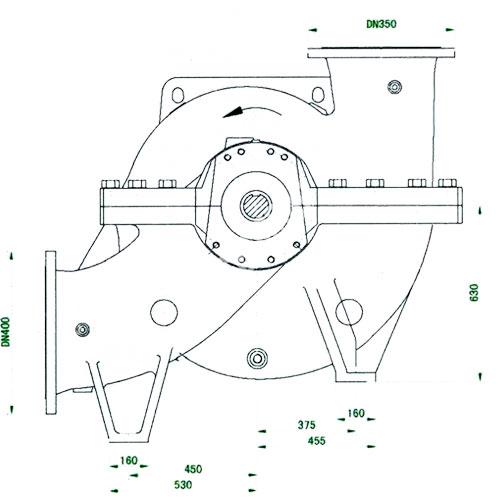

Marine Fire Suppression System >> Parts >> Fire Pumps >> External Fire PumpsHorizontal Single Stage Double Suction Bottom Suction Top Discharge Centrifugal Pump
 |
 |
||
| Product name: | Horizontal Single Stage Double Suction Bottom Suction Top Discharge Centrifugal Pump | ||
| Product No. | MFFE006-CXB2 | ||
| Speed | 1800rpm | ||
| Capacity: | 1750m3/h | ||
| Total head | 1475m | ||
| Power absorbed | 1005kw | ||
| Torque | 5332Nm | ||
| Inlet | DN400 | ||
| Outlet | DN350 | ||
| Materials: | |||
| Pump shell | Bronze/ Nod.CI GGG50 | ||
| Impeller | Ni-Al-bronze | ||
| Shaft | Stainless steel | ||
| Bear | SKF | ||
| Sealing | Soft sealing | ||
