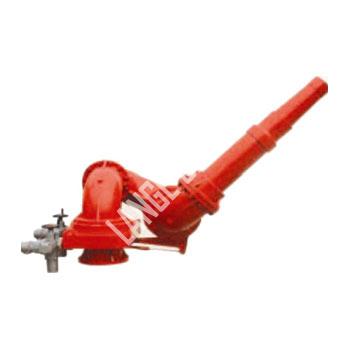

Marine Fire Suppression System >> Parts >> Foam Equipments >> Fixed Foam EquipmentsElectric Fire Monitor
 |
||||||
| Product name: | Electric Fire Monitor | |||||
| Product No. | MFFE005-FM017 | |||||
| Descriptions: | Produced on requirement | |||||
| Effective capacity: | 60000L/min | |||||
| The max pressure: | 16bar | |||||
| Inlet | Flange DN300 PN16 | |||||
| Outlet | Flange connection | |||||
| optional inlet flange: | ANSI12" | |||||
| rotation range | ||||||
| Horizontal: | 340℃ | |||||
| Vertical: | +75℃~ -45℃ | |||||
| Weight: | ~800Kg | |||||
| Materials: | ||||||
| Nody: | Stainless steel/Anti-corrosion aluminum alloy/Copper alloy | |||||
| Sealing: | NBR | |||||
| Pipe: | Hard aluminum alloy | |||||
| Flange: | Stainless steel/Anti-corrosion aluminum alloy/Copper alloy | |||||
| Painting: | Red RAL3000 | |||||
| The manitor can be arrested in any horizontal or vertical position. | ||||||
